Checkout With ShopeePay

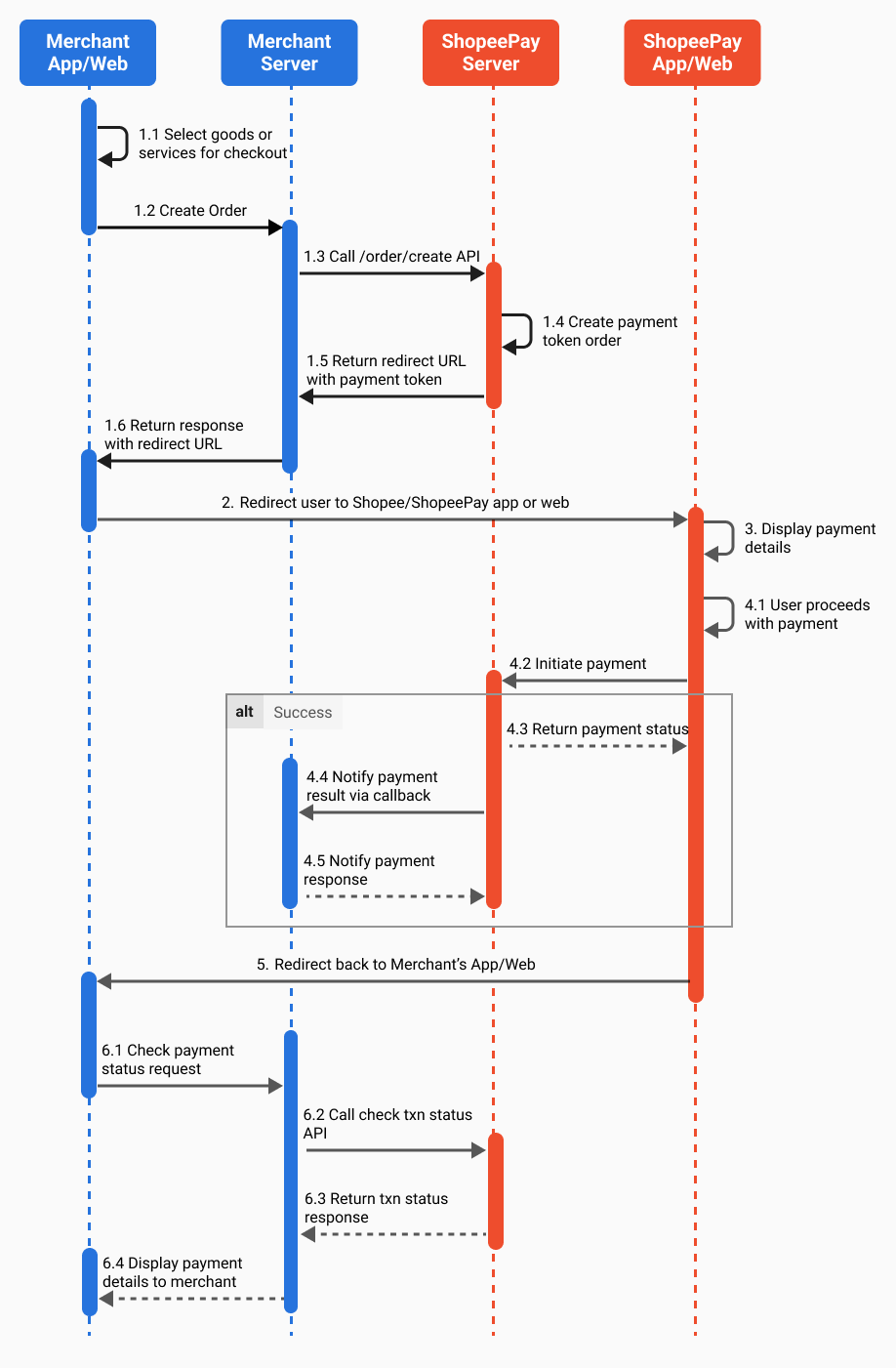

Merchant Workflow
To accept the payment in this scenario, the merchant needs to complete the following steps:
Initiate a payment request when customer selects to pay
Handle the redirect URL returned
Handle notification callback or query to check payment results
- Customer selects goods or services and proceeds to check out from the merchant's application or website. Merchant sends payment request to ShopeePay server via the Create Checkout Order endpoint. ShopeePay returns
redirect_url_http
and this URL can be used to direct users to Shopee/ShopeePay application or website. - Customer is redirected to either Shopee/ShopeePay application or website to proceed with payment.
- Customer sees the payment details such as payment amount, supported payment methods, and relevant promotional information on the Shopee/ShopeePay application or website.
- ShopeePay system returns the transaction result to the merchant. Meanwhile, customers will also see the updated payment result on the Shopee/ShopeePay application or website. ShopeePay also sends an asynchronous message via Notify Transaction Status endpoint to inform merchants on the payment result.
- Customer is then redirected back to the merchant's page to view payment status, as specified by the merchant in the
redirect_url
of the Create Checkout Order endpoint. Note: Redirect toreturn_url_http
should never be used as an indication of payment success. The Merchant should only rely on the server request response to check the final status of payment. - Merchants can also call the Check Transaction Status endpoint to query the status of the transaction.
- If the response code is "Success", merchant can mark this transaction as successful.
- If the response code is "Failed", merchant can mark this transaction as failed.
- If the transaction is in a processing status, please retry the request at an incremental time range of every 5 seconds (e.g., 5 seconds, 10 seconds, 15 seconds, and so on) up to a maximum of 100 seconds. If there is no response after 100 seconds, please retry the request at an incremental time range of every 5 minutes up to 24 hours. Alternatively, merchants can call the Invalidate endpoint to terminate the transaction.
- If the transaction has no response, please retry the request at an incremental time range of every 5 seconds (e.g., 5 seconds, 10 seconds, 15 seconds, and so on) up to a maximum of 100 seconds. If there is no response after 100 seconds, please retry the request at an incremental time range of every 5 minutes up to 24 hours.
- If customer can show evidence of payment success on their payment app, merchant may choose to consider payment as successful and wait for reconciliation process on T+1 to settle discrepancies with ShopeePay, if any.
Create Checkout Order
Use this endpoint to create a pending order to be paid by ShopeePay.
- URL: "/v3/merchant-host/order/create"
Request Parameters
Field | Type | Mandatory | Description |
---|---|---|---|
request_id | string | Y | Unique identifier for request, accepts up to 64 characters. |
payment_reference_id | string | Y | Unique identifier of transaction generated by merchant. |
merchant_ext_id | string | Y | Unique identifier of merchant in merchant’s system. |
store_ext_id | string | Y | Unique identifier of store in merchant’s system. |
amount | int64 | Y | Amount used for the payment, inflated by a factor of 100. A positive integer in the smallest currency unit, with no decimal point. Example: Smallest amount will be 1, which represents 0.01. For currencies that do not have denomination in cents, the smallest amount will be 100, which represents 1 IDR (Rp 1) or 1 VND (₫ 1). |
currency | string | Y | Currency that is associated with the payment amount. Specify the three-letter ISO currency code following the ISO 4217 standard. Currently supports IDR, MYR, PHP, SGD, THB, and VND. |
return_url | string | Y | Indicates the URL (in HTTP links or URL scheme formats) of the merchant’s application to redirect back to once the payment is processed by ShopeePay or when the customer canceled the payment. |
platform_type | string | Y | Type of the merchant’s platform that the customer triggered the checkout flow from. Accepted values: “app” “pc” “mweb” (mobile web) |
validity_period | uint32 | N | By default, the expiry time will be set to 1200 seconds (20 minutes), from the time the request was received. If this field is filled, the order with the corresponding payment_reference_id in this request will expire after the specified time period (in seconds) and payment attempts to this payment_reference_id will fail. Accepts up to: 3600 seconds (60 minutes) in Malaysia, Philippines and Singapore 172800 seconds (2 days) for Vietnam 432000 seconds (5 days) for Indonesia and Thailand Note: The system will return an error if both validity_period and expiry_time parameters are used simultaneously. |
expiry_time | uint32 | N | Unix timestamp. By default, the expiry time will be set to 1200 seconds (20 minutes), from the time the request was received. If this field is filled, the order with the corresponding payment_reference_id in this request will expire after the specified timestamp and payment attempts to this payment_reference_id will fail. Accepts up to: 3600 seconds (60 minutes) in Malaysia, Philippines and Singapore 172800 seconds (2 days) for Vietnam 432000 seconds (5 days) for Indonesia and Thailand Note: The system will return an error if both validity_period and expiry_time parameters are used simultaneously. |
promo_ids | string | N | Comma separated eligible promo_ids of 100 characters or less (up to 20), if any. These promo_ids will be checked against promotional campaigns configured in ShopeePay to determine the valid reward amount the customer can receive for this transaction. |
additional_info | string | N | Additional information will be in json format. This field supports up to 3 fields and needs to be sent in this format: {"field1":"{Data1}","field2":"{Data2}" ,"field3":"{Data3}"} |
phone | string | N | Registered phone number of the customer on merchant’s platform, to be provided with the country code and without the plus sign. Example: An Indonesian phone number “82112345678” should be passed in as “6282112345678”, with 62 being the country code. A Vietnamese phone number “0981234567” should be passed in as “84981234567”, with 84 being the country code. |
preferred_payment_method_type | string | N | Allow merchants to choose the preferred payment method for the payment order, where this payment method will be selected at customer's payment page. Accepted value: SPayLater = 'spay_later' |
Sample API Request
REQUEST
{"request_id": "input-unique-request-id-here","payment_reference_id": "ref-must-be-unique","merchant_ext_id": "external-merchant","store_ext_id": "external-store","amount": 10000,"currency": "IDR","return_url": "www.shopeepay.com","platform_type": "app","validity_period": 3600,"promo_ids": "1234567890, 0987654321","additional_info": "{\”field1\”:\”Name\”,\”field2\”:\”Address\”,\”field3\”:\”Number\”}"}
Copy
Response Parameters
Field | Type | Description |
---|---|---|
request_id | string | Unique identifier for request. |
errcode | int32 | Error code to specify the error returned. |
debug_msg | string | Debug message to provide more information. |
redirect_url_htt | string | Indicates the universal URL to ShopeePay's payment page. Merchant should not impose any domain whitelisting and IP restriction for this URL. |
Sample API Response
RESPONSE
{"request_id": "input-unique-request-id-here","errcode": 0,"debug_msg": "success","redirect_url_http": "https://id.shp.ee/sppay_checkout_id?type=start&mid=10037747&target_app=shopee&medium_index=dFhkbmR1bTBIamhW1leIKk_wafo0ImuIpeW6op9elv5oSw&order_key=GD92qfhlclES7vmlD7plyHQGdRt9mNevhPFE8Gu9IWXcoFhiQNSDOxOcUSnLniuPkheNSp6fPcZ9bw&return_url=aHR0cHM6Ly93d3cuZ29vZ2xlLmNvbS5zZy8%2FYW1vdW50PTUwMDAwJmNsaWVudF9pZD10ZXN0eXkraG9zdCZyZWZlcmVuY2VfaWQ9dGVzdDEyJnJlc3VsdF9jb2RlPTIwMyZzaWduYXR1cmU9dnZ3dk1Mb1JBYlpYN2pMdjJiR2JJcDFMQVBZOFZ0Sjk5ZFdIUmhuMHhDZyUzRA%3D%3D&source=web&token=dFhkbmR1bTBIamhW1leIKk_wafo0ImuIpeW6op9elv5oSw"}
Copy
Response Code
Please refer to the following description for a general explanation of the errcode
returned during an API Response.
For a more detailed explanation, it is advisable to consult debug_msg
. This field provides additional information that can offer valuable insights for troubleshooting.
Merchants may choose to display the debug_msg
to their operators or staffs to facilitate prompt identification and resolution of the issue.
Value | Description |
---|---|
-2 | A server dropped the connection |
-1 | A server error occurred Please use Check Transaction Status endpoint to query the updated status of the payment |
0 | Success |
1 | The request parameters is invalid or a mandatory parameter is empty |
2 | Permission denied, often due to invalid status |
4 | Not found, often due to merchant/store/user/transaction not found |
11 | Duplicated request |
15 | Payment amount exceeded payment limit |
50 | The request parameters is invalid due to payload sent is not a valid JSON |
627 | The request parameters is invalid due to promo ID exceeded limit |
1800 | A server error occurred |
1908 | Service is temporarily down for scheduled maintenance |
